DBT280
Telescopic Boom Lift – 28.0m Diesel
JLG 860SJ or similar
The JLG 860SJ telescopic boom lift has a maximum working height of 28,1 m and a 230 kg maximum load capacity. It allows the continuous 360 degree rotation of the dome and has a fuel-efficient Tier 4 diesel engine. Tare weight is 17.200 kg.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
28,21 m
Outreach
22,90 m
Workload Capacity
230 kg
Own weight
16.732 kg
Consumption (average / h)
7,10 kWh
CO2 emission (average / h)
18,96 kg
Platform dimensions (d x w)
2,44 x 0,91m
Transport dimensions (d x w x h)
12,19 x 2,49 x 3,05m
Max platform height
26,20 m
Max platform outreach
22,90 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
25,00 %
Usage
Outdoor, Offroad
Lifting Propulsion
Diesel

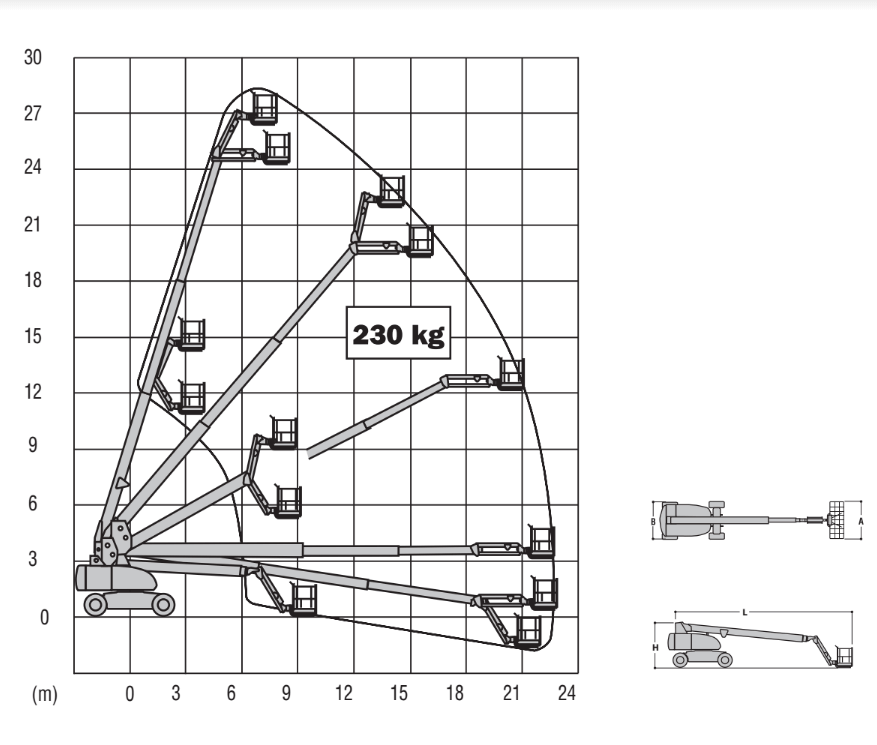

Diagram
Downloads
Specification Sheet Manufacturer
JLG 860SJ Specification sheet EN.pdf
02 Feb 2024
pdf
158.60 kb
BIM Model
Construction_Lifts_Riwal_EnginePoweredTelescopicBoomLifts_1001156802_860SJ_HORIZONTAL_OUTREACH.ifc
02 Feb 2024
ifc
23.40 mb
BIM Model
Construction_Lifts_Riwal_EnginePoweredTelescopicBoomLifts_1001156802_860SJ_PLATFORM_HEIGHT.ifc
02 Feb 2024
ifc
23.45 mb
BIM Model
Construction_Lifts_Riwal_EnginePoweredTelescopicBoomLifts_1001156802_860SJ_STOWED_POSITION.ifc
02 Feb 2024
ifc
23.46 mb
BIM Model
Construction_Lifts_Riwal_EnginePoweredTelescopicBoomLifts_1001156802_860SJ.rfa
09 Apr 2024
rfa
13.90 mb
Specification Sheet Riwal
RIWAL_specsheet_JLG-860SJ_en.pdf
26 Mar 2024
pdf
100.00 kb
An upgrade in toughness and strength from the well proven
Interested in renting a telescopic boom lift? We offer telescopic boom lifts for countless sectors, and assure you of first-class quality at all times. Our telescopic boom lifts are from renowned manufacturers such as JLG and Aichi. These brands are known for the flexibility of deployment of their machines, and have more than earned their stripes in the field. By working with these brands exclusively, we offer our many customers the best quality at all times, both in terms of products and service. Discover our broad range of telescopic boom lifts now, and rent the perfect machine to meet your requirements!
