DBT220
Telescopic Boom Lift – 22.0m Diesel

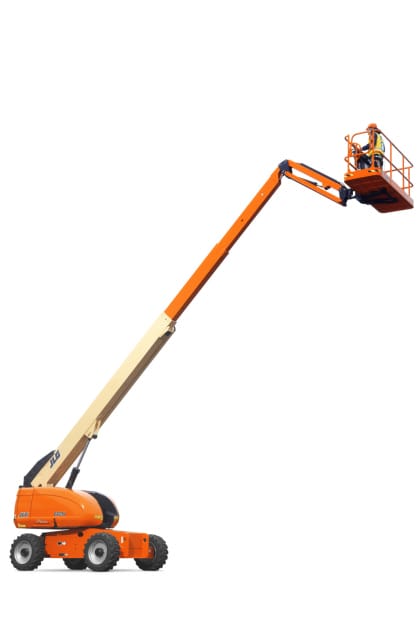

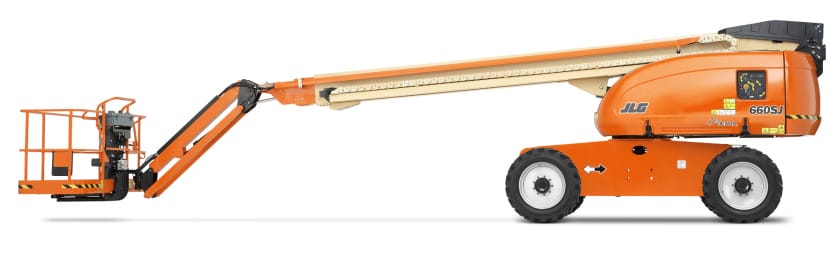

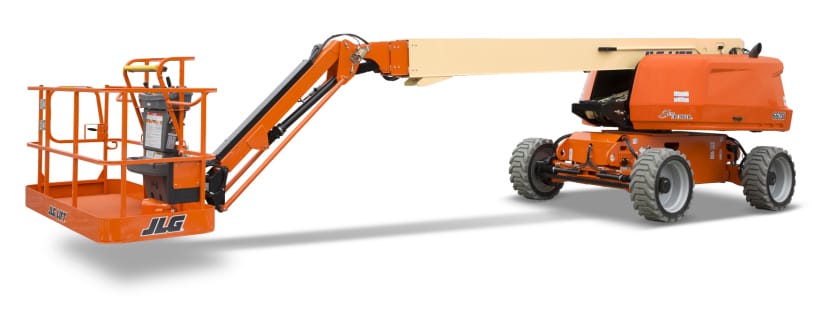

JLG 660SJ or similar
The JLG 660SJ is an easy to operate telescopic boom lift, equipped with a powerful Tier 4 diesel engine and four-wheel drive, as well as oscillating axles for off-road conditions. It has an impressive working height of 22,31 m, a horizontal reach of 17,95 m and a platform capacity of 230 kg. Continuous 360-degree rotation of the dome allows for working at height efficiently.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
22,30 m
Outreach
17,95 m
Workload Capacity
230 kg
Own weight
12.720 kg
Consumption (average / h)
7,10 kWh
CO2 emission (average / h)
18,96 kg
Platform dimensions (d x w)
1,83 x 0,91m
Transport dimensions (d x w x h)
10,21 x 2,49 x 2,57m
Max platform height
20,30 m
Max platform outreach
17,40 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
30,00 %
Usage
Outdoor, Offroad
Lifting Propulsion
Diesel
Diagram
Downloads
Specification Sheet Manufacturer
JLG 660SJ Specification sheet EN.pdf
02 Feb 2024
BIM Model
Construction_Lifts_Riwal_EnginePoweredTelescopicBoomLifts_1001188600_660SJ_ STOWED_POSITION.ifc
02 Feb 2024
ifc
32.53 mb
BIM Model
Construction_Lifts_Riwal_EnginePoweredTelescopicBoomLifts_1001188600_660SJ_HORIZONTAL_OUTREACH.ifc
02 Feb 2024
ifc
32.41 mb
BIM Model
Construction_Lifts_Riwal_EnginePoweredTelescopicBoomLifts_1001188600_660SJ_PLATFORM_HEIGHT.ifc
02 Feb 2024
ifc
32.48 mb
BIM Model
Construction_Lifts_Riwal_EnginePoweredTelescopicBoomLifts_1001188600_660SJ.rfa
09 Apr 2024
rfa
12.90 mb
Specification Sheet Riwal
RIWAL_specsheet_JLG-660SJ_en.pdf
26 Mar 2024
pdf
120.93 kb
An upgrade in toughness and strength from the well proven
