DCT220
Crawler Telescopic Lift – 22.0m with Quad Trax

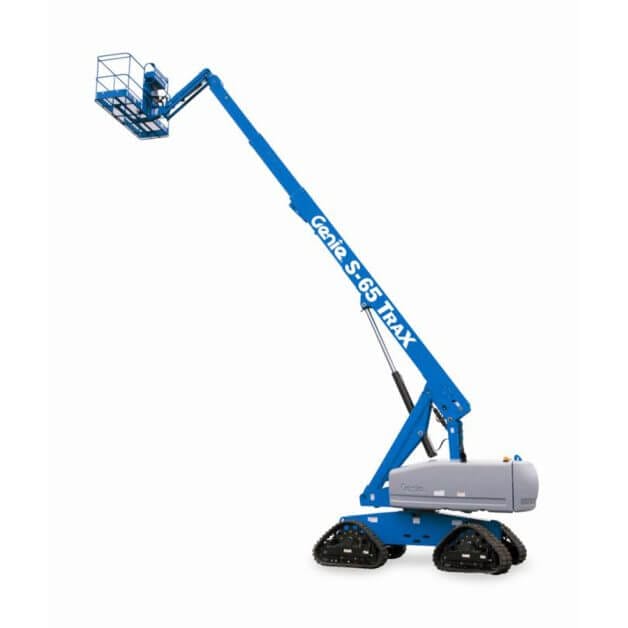

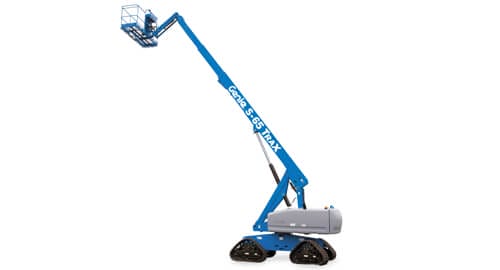

Genie S65TRAX or similar
The robust diesel-powered Genie S65 Trax crawler telescopic boom lift has great off-road performance, due to its tracked undercarriage. Its working height is 21,86 m, with a 227 kg lifting capacity.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
21,86 m
Outreach
17,10 m
Workload Capacity
227 kg
Own weight
12.229 kg
Consumption (average / h)
8.2 l/hour
CO2 emission (average / h)
21,89 kg
Platform dimensions (d x w)
0,91 x 2,44m
Transport dimensions (d x w x h)
9,50 x 2,59 x 2,77m
Max platform height
19,86 m
Max platform outreach
17,10 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
30,00 %
Usage
Outdoor
Lifting Propulsion
Diesel
Diagram
Downloads
An upgrade in toughness and strength from the well proven
A crawler lift from Riwal is a great solution. Not just because of the premium quality crawler lifts we provide, from manufacturers such as JLG or Hitachi, but also because of the great service we offer too. With Riwal, you can count on many years of experience in renting out crawler lifts and many other types of aerial work platform.
