DCT220

Crawler Telescopic Lift – 22.0m Diesel

JLG 660SJC or similar

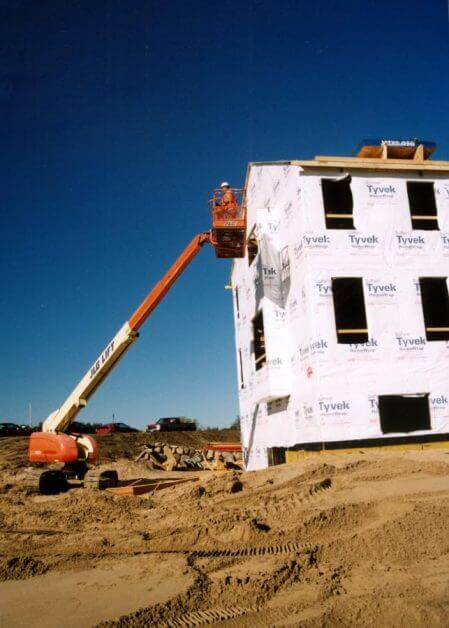

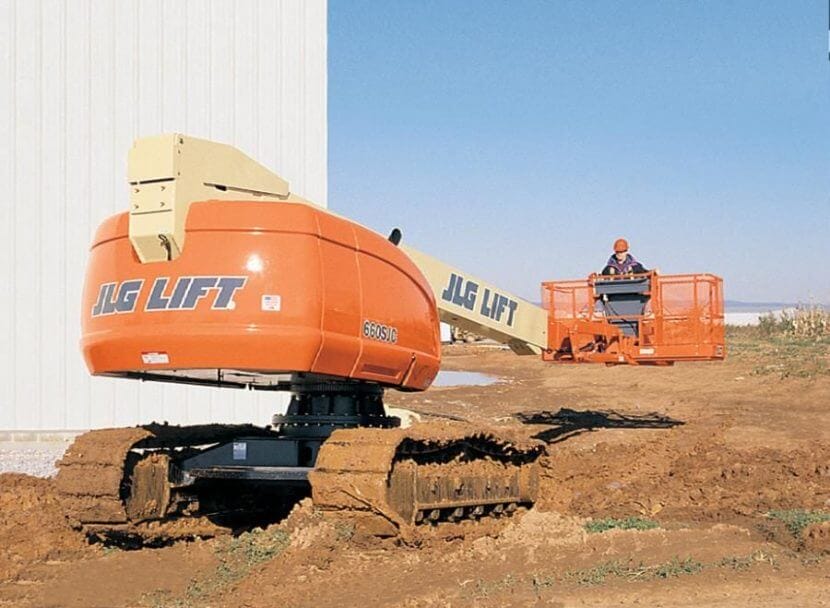

The JLG 660SJC telescopic crawler boom lift with a powerful Deutz Tier 4 diesel engine, a tracked undercarriage for soft terrain and 55% gradeability. Zero turning radius and a single drive/steer joystick for one-handed operation. Working height 21,99 m, horizontal outreach 17,39 and max. lift capacity 340 kg.

Rent this machine

Need help with rental?
Safety gear required
Technical data
Driving propulsion
Diesel
Working height
22,30 m
Outreach
18,00 m
Workload Capacity
230 kg
Own weight
12.300 kg
Platform dimensions (d x w)
1,83 x 0,91m
Transport dimensions (d x w x h)
10,21 x 2,49 x 2,56m
Max platform height
20,30 m
Max platform outreach
18,00 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
55,00 %
Usage
Outdoor
Lifting Propulsion
Diesel
Diagram
Downloads

An upgrade in toughness and strength from the well proven

The JLG 660SJC is highly recomended for the toughest jobs as it can eaisly monever on rough terrains and provides you the mobility you need. Its zero turing radius provides you flexiblity to get around the job site easily.
