DBA405

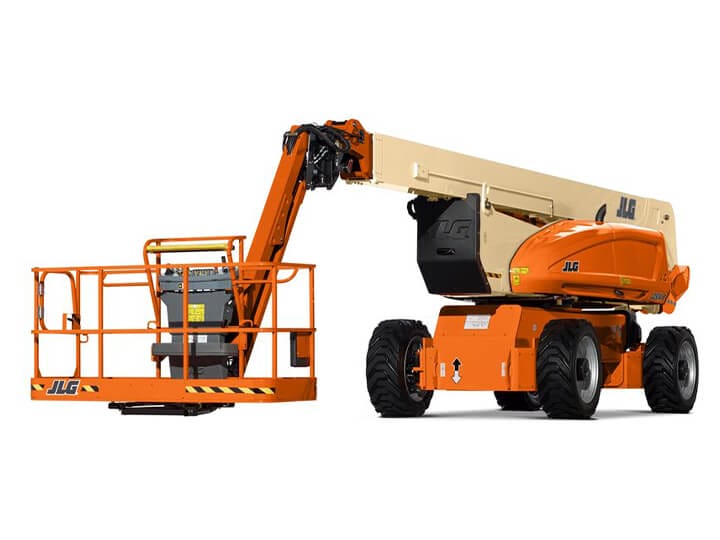

Articulated Boom Lift – 40.5m Diesel
JLG 1250AJP or similar

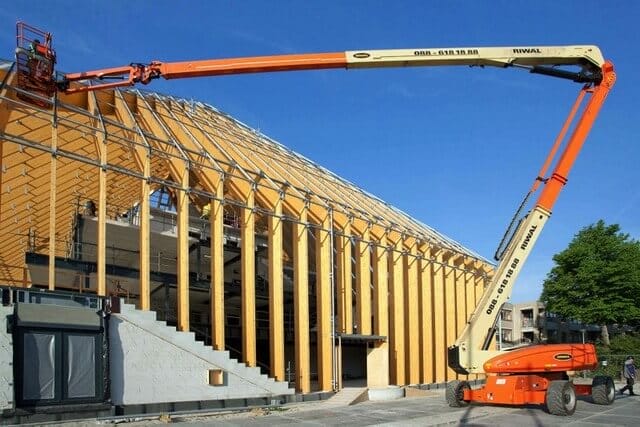

The 1250AJP articulated boom lift has a maximum working height of 40 m. It has three wheel turning options and two load capacity options. The 450 kg capacity option offers a working height of 36 m, while the 230 kg capacity option allows the basket to reach its full working height and the JIB arm to rotate 180 degrees.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
40,30 m
Outreach
19,25 m
Workload Capacity
230 kg
Own weight
21.000 kg
Consumption (average / h)
11,10 kWh
CO2 emission (average / h)
29,64 kg
Platform dimensions (d x w)
0,91 x 2,44m
Transport dimensions (d x w x h)
11,46 x 2,49 x 3,05m
Max platform height
38,30 m
Max platform outreach
19,25 m
Ground clearance
0,30 m
Drive speed
5,20 km/u
Fuel tank
117 L
Up & over height
18,44 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
45,00 %
Usage
Outdoor, Offroad, Indoor
Lifting Propulsion
Diesel
Diagram
Downloads
Specification Sheet Manufacturer
JLG 1250AJP Specification sheet EN.pdf
02 Feb 2024
pdf
1.96 mb
BIM Model
Construction_Lifts_Riwal_EnginePoweredArticulatingBoomLifts_1001160110_1250AJP_HORIZONTAL_OUTREACH.ifc
02 Feb 2024
ifc
30.38 mb
BIM Model
Construction_Lifts_Riwal_EnginePoweredArticulatingBoomLifts_1001160110_1250AJP_PLATFORM_HEIGHT.ifc
02 Feb 2024
ifc
30.46 mb
BIM Model
Construction_Lifts_Riwal_EnginePoweredArticulatingBoomLifts_1001160110_1250AJP_STOWED_POSITION.ifc
02 Feb 2024
ifc
30.46 mb
BIM Model
Construction_Lifts_Riwal_EnginePoweredArticulatingBoomLifts_1001160110_1250AJP.rfa
09 Apr 2024
rfa
15.51 mb
Specification Sheet Riwal
RIWAL_specsheet_JLG-1250AJP_en.pdf
26 Mar 2024
pdf
102.96 kb
An upgrade in toughness and strength from the well proven
Do you have a job or project where you need an articulating boom lift? You can hire an articulating boom lift from Riwal on attractive price/quality terms. The articulating boom lift is perfect for jobs where there are obstacles at height and is also perfectly suitable for inside use. Have a look at our below listed wide range. Please do not hesitate to contact us if you need any advice. We’d be delighted to tell you more about the benefits of articulating boom lift rental!
