DBA260
Articulated Boom Lift – 26.0m Diesel
JLG 800AJ or similar

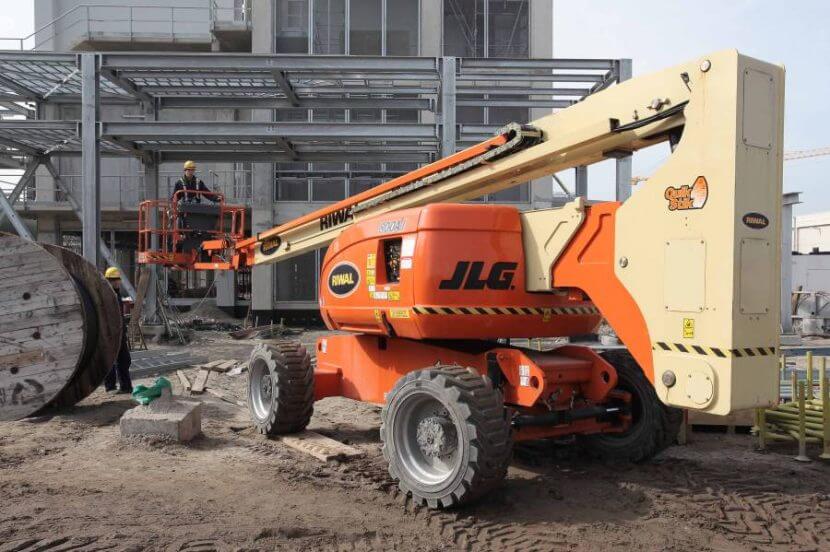

The JLG 800AJ diesel-powered articulating boom lift has 26,38 m working height, 16,45 m reach and a platform capacity of 230 kg. The QuikStick boom design significantly reduces lift/lowering time and a 130-degree jib rotation for efficiency. Equipped with a powerful Deutz Tier 4 diesel engine.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
26,40 m
Outreach
15,70 m
Workload Capacity
230 kg
Own weight
16.110 kg
Consumption (average / h)
7,10 kWh
CO2 emission (average / h)
18,96 kg
Platform dimensions (d x w)
1,83 x 0,91m
Transport dimensions (d x w x h)
11,13 x 2,49 x 3,00m
Max platform height
24,40 m
Max platform outreach
15,70 m
Up & over height
9,78 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
30,00 %
Usage
Outdoor
Lifting Propulsion
Diesel
Diagram
Downloads
Specification Sheet Manufacturer
JLG 800AJ Specification sheet EN.pdf
02 Feb 2024
pdf
246.01 kb
BIM Model
Construction_Lifts_Riwal_EnginePoweredArticulatingBoomLifts_1001156800_800AJ_ STOWED_POSITION.ifc
07 Feb 2024
ifc
13.72 mb
BIM Model
Construction_Lifts_Riwal_EnginePoweredArticulatingBoomLifts_1001156800_800AJ_HORIZONTAL_OUTREACH.ifc
02 Feb 2024
BIM Model
Construction_Lifts_Riwal_EnginePoweredArticulatingBoomLifts_1001156800_800AJ_PLATFORM_HEIGHT.ifc
02 Feb 2024
ifc
13.71 mb
BIM Model
Construction_Lifts_Riwal_EnginePoweredArticulatingBoomLifts_1001156800_800AJ.rfa
09 Apr 2024
rfa
8.82 mb
Specification Sheet Riwal
RIWAL_specsheet_JLG-800AJ_en.pdf
14 Feb 2024
pdf
87.58 kb
An upgrade in toughness and strength from the well proven
Do you have a job or project where you need an articulating boom lift? You can hire an articulating boom lift from Riwal on attractive price/quality terms. The articulating boom lift is perfect for jobs where there are obstacles at height and is also perfectly suitable for inside use. Have a look at our below listed wide range. Please do not hesitate to contact us if you need any advice. We’d be delighted to tell you more about the benefits of articulating boom lift rental!
