DBA205
Articulated Boom Lift – 20.5m Diesel
JLG 600AJ or similar

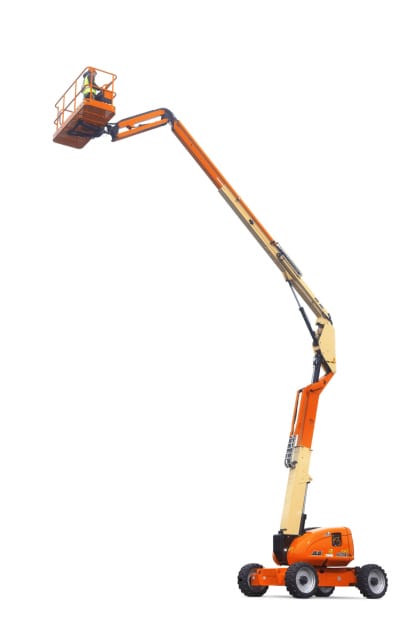

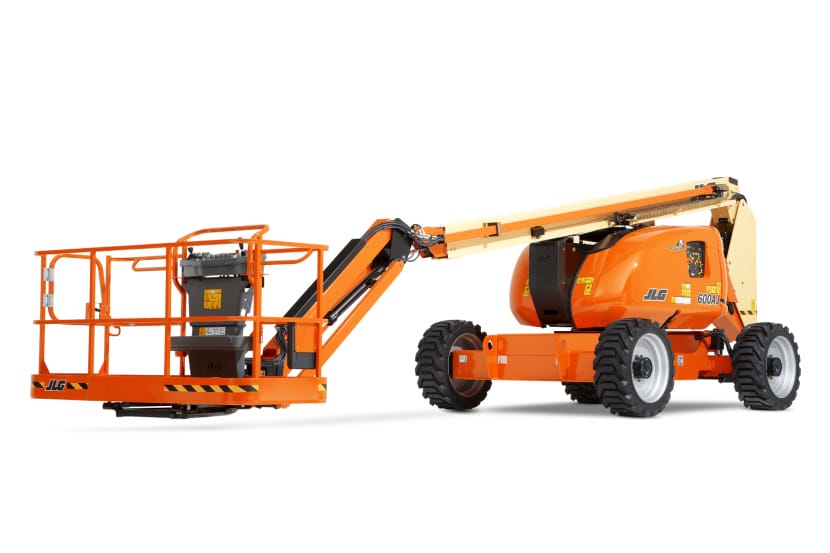

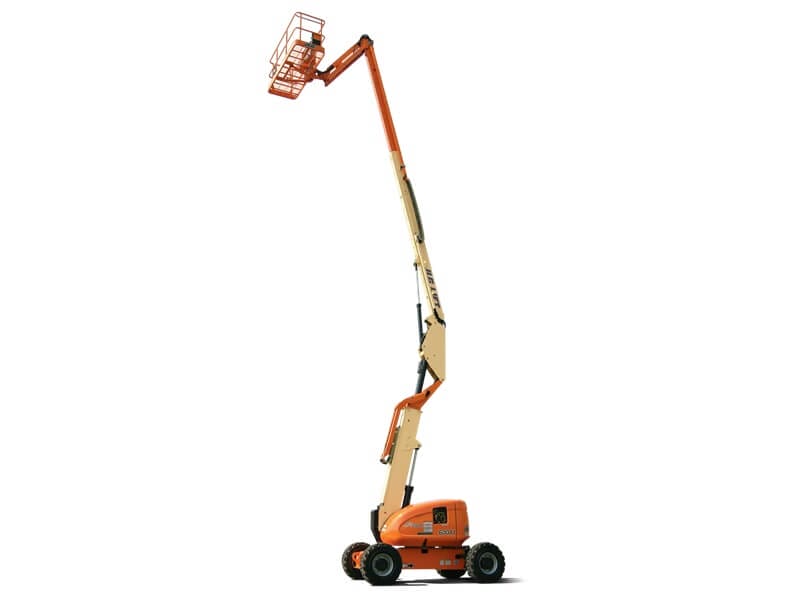

The diesel powered JLG 600AJ articulated boom lift has a working height 20,46 m, a maximum reach of 12,75 m and a 230 kg platform capacity. Easily manages obstacles due to 360-degree rotation and 130-degree jib rotation.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
20,50 m
Outreach
12,75 m
Workload Capacity
230 kg
Own weight
10.660 kg
Consumption (average / h)
4.1 l/hour
CO2 emission (average / h)
14,42 kg
Platform dimensions (d x w)
1,83 x 0,91m
Transport dimensions (d x w x h)
8,82 x 2,49 x 2,57m
Max platform height
18,50 m
Max platform outreach
12,10 m
Up & over height
8,09 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
30,00 %
Usage
Outdoor
Lifting Propulsion
Diesel
Diagram
Downloads
Specification Sheet Manufacturer
JLG 600AJ Specification sheet EN.pdf
02 Feb 2024
BIM Model
Construction_SiteConstruction_Riwal_JLG_EnginePoweredArticulatingBoomLifts_1001156800_600AJ_ STOWED_POSITION.ifc
02 Feb 2024
BIM Model
Construction_SiteConstruction_Riwal_JLG_EnginePoweredArticulatingBoomLifts_1001156800_600AJ_HORIZONTAL_OUTREACH.ifc
02 Feb 2024
BIM Model
Construction_SiteConstruction_Riwal_JLG_EnginePoweredArticulatingBoomLifts_1001156800_600AJ_PLATFORM_HEIGHT.ifc
02 Feb 2024
BIM Model
Construction_SiteConstruction_Riwal_JLG_600AJ.rfa
09 Apr 2024
Specification Sheet Riwal
RIWAL_specsheet_JLG-600AJ_en.pdf
26 Mar 2024
An upgrade in toughness and strength from the well proven
Do you have a job or project where you need an articulating boom lift? You can hire an articulating boom lift from Riwal on attractive price/quality terms. The articulating boom lift is perfect for jobs where there are obstacles at height and is also perfectly suitable for inside use. Have a look at our below listed wide range. Please do not hesitate to contact us if you need any advice. We’d be delighted to tell you more about the benefits of articulating boom lift rental!
