DBA180
Articulated Boom Lift – 18.0m Diesel

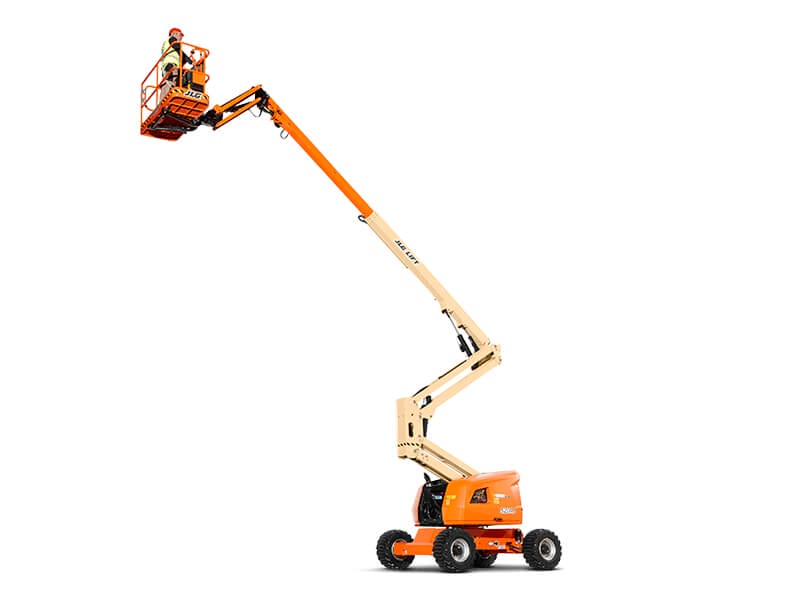

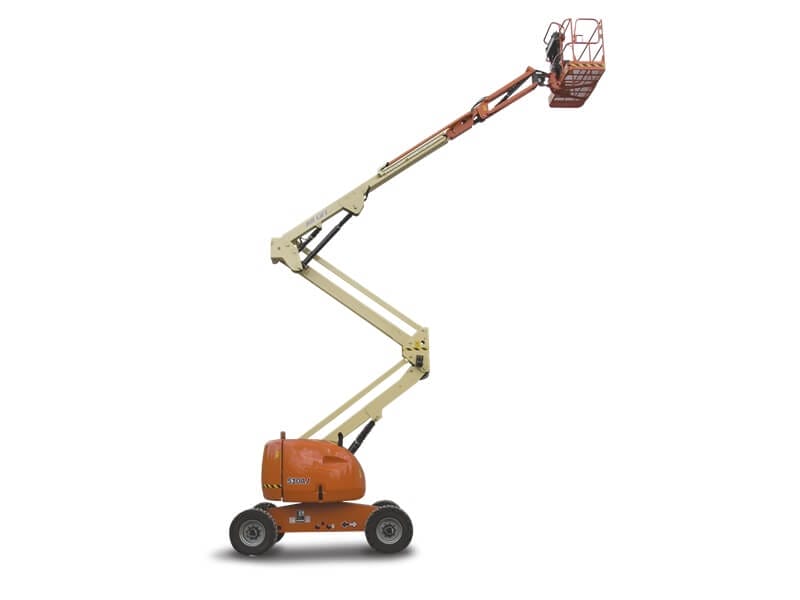

JLG 520AJ or similar
The JLG 520AJ diesel fueled articulated boom lift has an 18 m working height and a maximum lifting capacity of 250 kg. Horizontal outreach is 10 m, a 355 degree non-continuous swing and a 144 degree jib rotation.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
18,00 m
Outreach
10,00 m
Workload Capacity
250 kg
Own weight
7.985 kg
Consumption (average / h)
8,30 kWh
CO2 emission (average / h)
22,16 kg
Platform dimensions (d x w)
1,83 x 0,76m
Transport dimensions (d x w x h)
7,77 x 2,35 x 2,27m
Max platform height
16,00 m
Max platform outreach
10,00 m
Up & over height
7,30 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
45,00 %
Usage
Outdoor
Lifting Propulsion
Diesel
Diagram
Downloads
Specification Sheet Manufacturer
JLG 520AJ Specification sheet EN.pdf
15 Feb 2024
pdf
1.98 mb
BIM Model
Construction_SiteConstruction_Riwal_JLG_EnginePoweredArticulatingBoomLifts_1001156800_520AJ_ STOWED_POSITION.ifc
02 Feb 2024
BIM Model
Construction_SiteConstruction_Riwal_JLG_EnginePoweredArticulatingBoomLifts_1001156800_520AJ_HORIZONTAL_OUTREACH.ifc
02 Feb 2024
ifc
17.69 mb
BIM Model
Construction_SiteConstruction_Riwal_JLG_EnginePoweredArticulatingBoomLifts_1001156800_520AJ_PLATFORM_HEIGHT.ifc
02 Feb 2024
ifc
17.69 mb
BIM Model
Construction_SiteConstruction_Riwal_JLG_520AJ.rfa
09 Apr 2024
rfa
11.58 mb
Specification Sheet Riwal
RIWAL_specsheet_JLG-520AJ_en.pdf
26 Mar 2024
pdf
92.73 kb
An upgrade in toughness and strength from the well proven
Do you have a job or project where you need an articulating boom lift? You can hire an articulating boom lift from Riwal on attractive price/quality terms. The articulating boom lift is perfect for jobs where there are obstacles at height and is also perfectly suitable for inside use. Have a look at our below listed wide range. Please do not hesitate to contact us if you need any advice. We’d be delighted to tell you more about the benefits of articulating boom lift rental!
