DBA160
Articulated Boom Lift – 16.0m Diesel
JLG 450AJ or similar

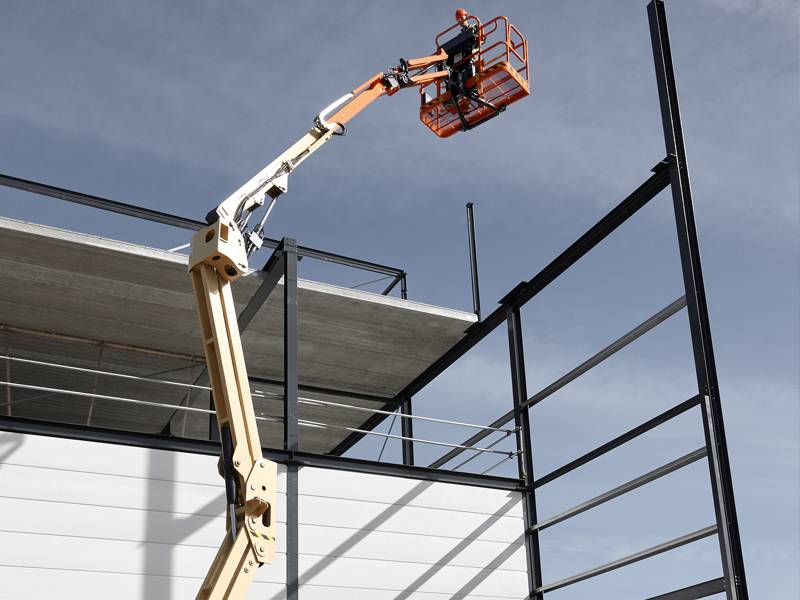

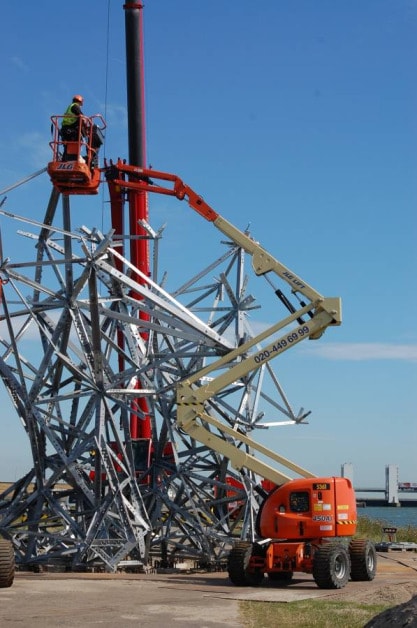

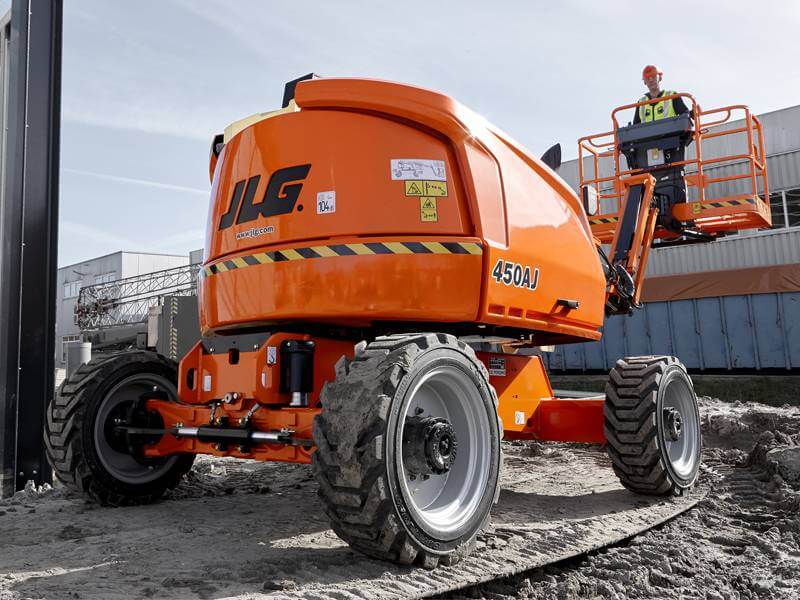

The JLG 450AJ diesel-powered articulating boom lift has a maximum load capacity of 250 kg and a 15,72 m working height. The lift is flexible with a 355 degree rotation and 144 degree jib rotation. Flexible front axle allows work on uneven surfaces, and fast elevation for increased work efficiency.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
15,80 m
Outreach
7,50 m
Workload Capacity
250 kg
Own weight
6.495 kg
Consumption (average / h)
7,60 kWh
CO2 emission (average / h)
20,29 kg
Platform dimensions (d x w)
1,83 x 0,76m
Transport dimensions (d x w x h)
6,58 x 2,36 x 2,27m
Max platform height
13,80 m
Max platform outreach
7,50 m
Up & over height
6,09 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
45,00 %
Usage
Outdoor
Lifting Propulsion
Diesel
Diagram
Downloads
Specification Sheet Manufacturer
JLG 450AJ Specification sheet EN.pdf
02 Feb 2024
pdf
2.64 mb
BIM Model
Construction_SiteConstruction_Riwal_JLG_EnginePoweredArticulatingBoomLifts_1001156800_450AJ_ STOWED_POSITION.ifc
02 Feb 2024
ifc
25.88 mb
BIM Model
Construction_SiteConstruction_Riwal_JLG_EnginePoweredArticulatingBoomLifts_1001156800_450AJ_HORIZONTAL_OUTREACH.ifc
02 Feb 2024
ifc
25.87 mb
BIM Model
Construction_SiteConstruction_Riwal_JLG_EnginePoweredArticulatingBoomLifts_1001156800_450AJ_PLATFORM_HEIGHT.ifc
02 Feb 2024
ifc
25.90 mb
BIM Model
Construction_SiteConstruction_Riwal_JLG_450AJ.rfa
09 Apr 2024
rfa
11.95 mb
Specification Sheet Riwal
RIWAL_specsheet_JLG-450AJ_en.pdf
26 Mar 2024
pdf
80.42 kb
An upgrade in toughness and strength from the well proven
Do you have a job or project where you need an articulating boom lift? You can hire an articulating boom lift from Riwal on attractive price/quality terms. The articulating boom lift is perfect for jobs where there are obstacles at height and is also perfectly suitable for inside use. Have a look at our below listed wide range. Please do not hesitate to contact us if you need any advice. We’d be delighted to tell you more about the benefits of articulating boom lift rental!
