EBA135
Articulated Boom Lift – 13.5m Electric

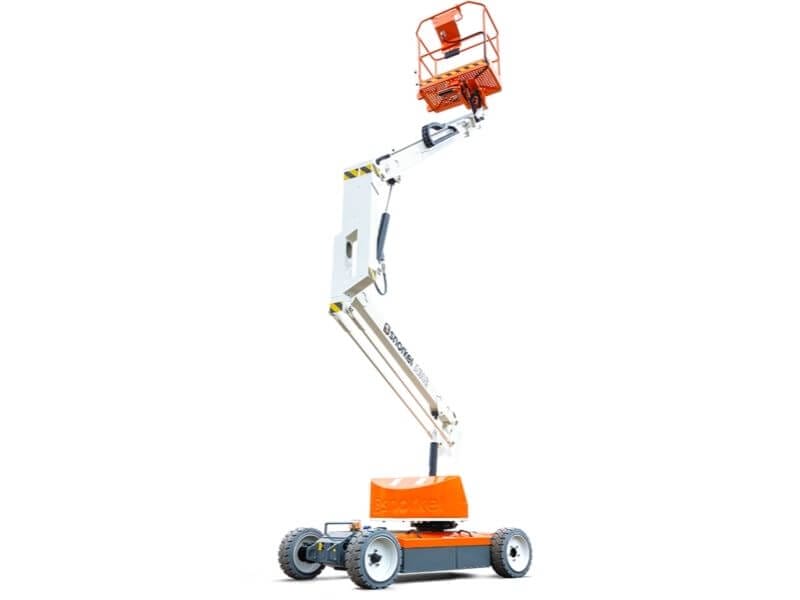

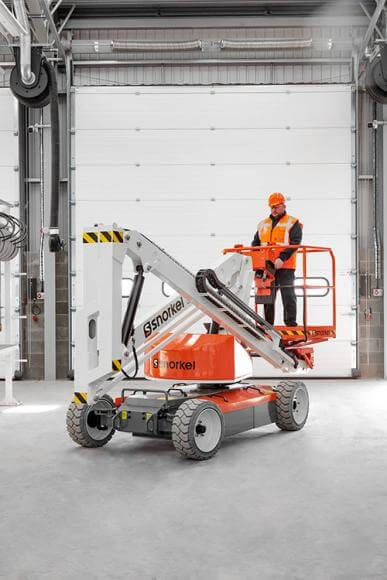

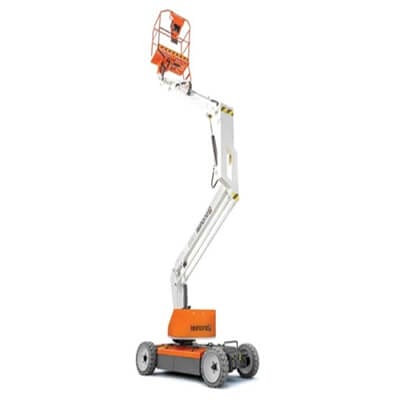

Snorkel A38E or similar
With a working height of 13,5 m and a 215 kg platform capacity, the Snorkel A38E articulated boom lift delivers an impressive height-to-weight ratio, ideal for jobsites with reduced floor loadings. Energy-efficient electric drive, and superb working envelope and proportional controls for precise positioning.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Electric
Working height
13,50 m
Outreach
5,90 m
Workload Capacity
215 kg
Own weight
3.850 kg
Consumption (average / h)
8,73 kWh
CO2 emission (average / h)
2,84 kg
Platform dimensions (d x w)
1,20 x 0,60m
Transport dimensions (d x w x h)
4,04 x 1,50 x 2,00m
Max platform height
11,50 m
Max platform outreach
5,90 m
Up & over height
4,80 m
Recommended number of people
1
Maneuvering at height
Yes
Charging voltage
220-240 V
Usage
Indoor
Lifting Propulsion
Electric
Diagram
Downloads
An upgrade in toughness and strength from the well proven
Do you have a job or project where you need an articulating boom lift? You can hire an articulating boom lift from Riwal on attractive price/quality terms. The articulating boom lift is perfect for jobs where there are obstacles at height and is also perfectly suitable for inside use. Have a look at our below listed wide range. Please do not hesitate to contact us if you need any advice. We’d be delighted to tell you more about the benefits of articulating boom lift rental!
